Mid-level (Ⅳ): Blender Tutorial for Beginners

I.Introduction

This document introduces how to use Blender to edit cool actions of Sirius and debug accordingly. The document will also demonstrate how to export and play actions through Python scripts to achieve automated demonstrations of cool actions. To help users design and master the action editing of Sirius more efficiently, let's learn what effects Blender can achieve!

II.Results Show

III.Quick Guide to Experience Action Sets

After we know what blender can achieve, will you hurry up to reproduce these interesting actions for your Sirius? Now, follow HENGBOT to experience the action sets!

3.1 Preparation

3.1.1 Basic Knowledge

• Before starting, pelase read the unboxing document “Entry-level configuration and usage”, to learn basic configuration and usage of Sirius.
• Basic programming knowledge and running environment setup of Python are required for this document.

3.1.2 Hardware Requirements

• One Sirius
• One PC with Windows OS

3.1.3 Operation Environment

Remove the foam from the packaging box. During moving, prevent the product from excessive impact, such as falling down or colliding, etc. Make sure that the Sirius is placed on a stable ground in a proper initial posture before using it.

3.1.4 Software Preparation

Software preparation for both the robot dog Sirius and the PC.

• Start up Sirius and connect to network

Preparation	Reference Documents	Reference pictures
Power on and charging of Sirius	Please refer to the following document for the relevant operation steps.
Sirius:Networking operation（ you need to manually enter WiFi mode with the left and right ear buttons.Reference document)	Please refer to the following document for the relevant operation steps.Tips: use the following tools to generate QR code.

• Download and Install Blender and the Engineering Package.

Steps	Download
Install Blender：Download the installation package from the link on the right and complete the installation.（Blender version for demostration here：4.2.2-Windows）	Download
Download the engineering package: This project has already been configured with dance movements for a quick experience of Sirius's dance. Remember to extract the compressed package after downloading.（It is recommended to extract and save the project files to the same directory as Blender for future use.）

3.2 Connect Sirius and Play the Action Sets

All preparations are complete, next, connect Sirius and Blender to experience action sets. Let your Sirius “dance”.

Steps	Reference pictures
1. Double-click to open the extracted initial project.

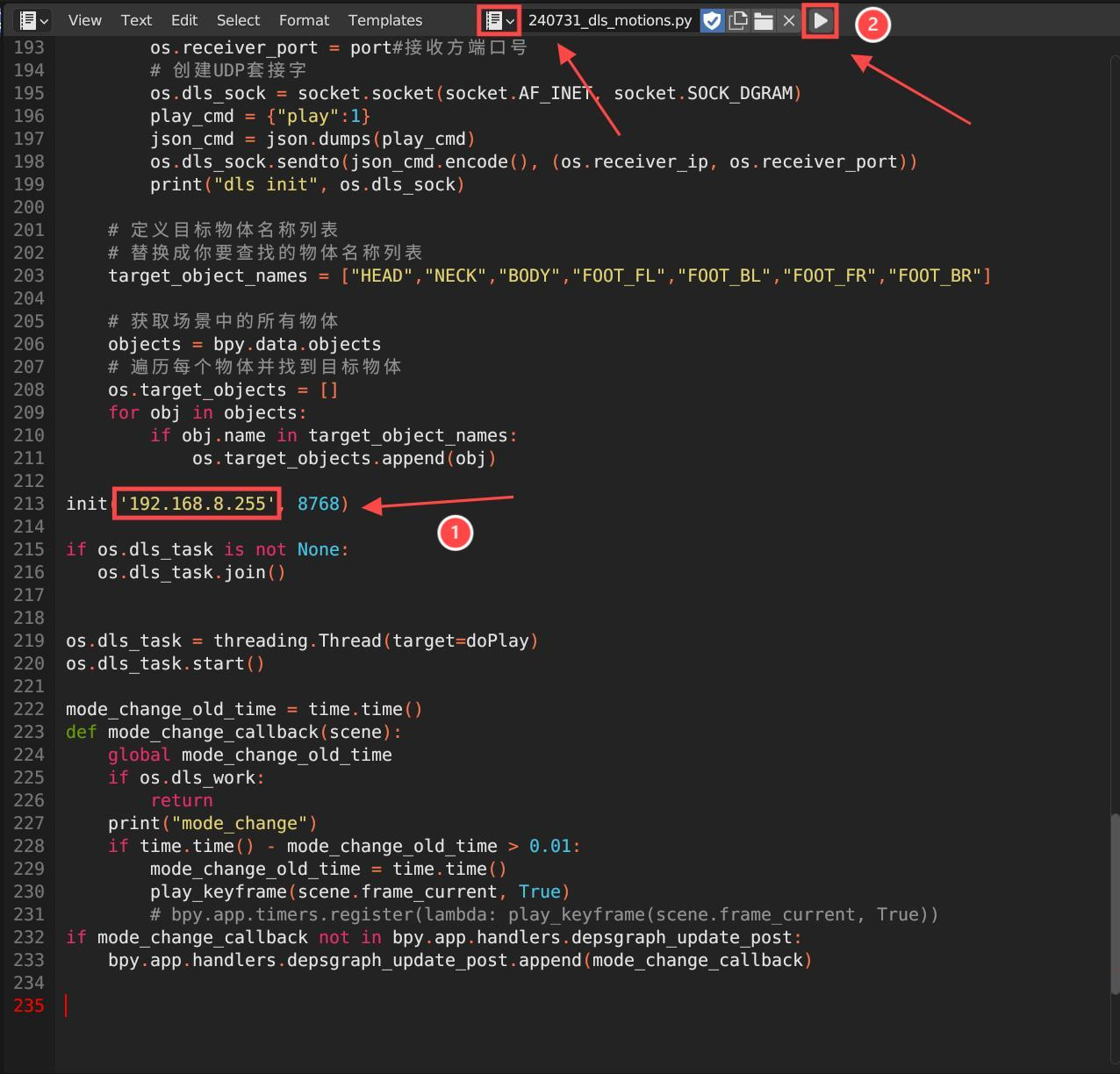

2. Change the IP address to the one on the Sirius's head (see mark ①); Click the button to play (see mark ②)
3. Shut down Blender and save codes as mark ① and ② shown in the right picture.
4. Restart Blender project. Click the button to run (see mark ①). Click the button to play (see mark ②). You will see the same action sets reproduced from the project.（① Run the codes of the project including connecting Sirius.② Play/pause the action sets.）

Ⅳ.How to make your Sirius “Dance”?

After experiencing the silky action sets in Blender, do you desire to create a set of exclusive actions for your Sirius? Please follow the document to learn how to make your Sirius dance.

4.1 Import Initial Engineering Package

Before practical operation, we need to make some preparations.

• Download and open a new project package.
• Change the IP address to connect Sirius (refer to the steps above).

4.2 Edit Motions for Your Sirius

You will see that the initial frame of standing has existed in the initial project.

As we known, standing and lying are two postures. Now that the frame of standing has existed, we only need to edit the posture of lying.

Cautions

When editing actions with Blender, the actions will be automatically synchronized to Sirius in real time. To avoid any incident caused by excessive movement amplitude such as bouncing, falling, or colliding, it is recommended to be extra careful when performing the following operations, or try to slow the action as much as possible.

• When editing, please don't drag or adjust in a large amplitude, which will easily lead to the disconnection between Xiaotian and Blender.
• After any operation, please move the cursor out of the model editing area, which prevents any damage result from bouncing or falling due to careless moving the cursor.
• In case of disconnection, please click the button in the upper right corner to run the script again to connect.
• If 100Hz is used as the target frame rate, the real-time preview may be lower than 100Hz due to computer performance, and the display in the upper left corner is only about 60fps,which will lead to the inconsistency between the speed of the final exported action and the preview, which needs to be considered in advance.

Steps	Reference	pictures
1. The picture on the right shows the timeline editor. Refer to mark ① and drag the blue slider to 100 to create a new keyframe.（0-100: The default time scale here is 100 equalling to 1 second, which can also be set to 75.）
2. Select mark① (highlight area) and drag the cursor downwards to make Sirius achieve a squatting posture. Then drag the cursor to the right to move the center of gravity backwards.Because it is difficult to understand the parameter values of squatting and moving back the center of gravity, please refer to the mark ② demonstration parameters for the numerical range here.
3. The initial project defaults to "Translation Mode" (mark ①), which only supports move Up, Down, Left, and Right. Please switch to "Rotation Mode" (mark ②), and then adjust Sirius to a lying down position (mark③).Mark①: Translation ModeMark②: Rotation ModeMark④: Demo Parameters		G—Translation Press G: Click once to move along X/Y/Z axis.Click twice to switch Global and Local Axis. R—RotationPress R: Click once to rotate along X/Y/Z axis.Click twice to switch Global and Local Axis.
4. Now, Sirius is nearly in a sitting posture, let's make the final adjustments.Switch to "Translation Mode" (mark ①), use Mark②"Translation Mode" (three color reference line). Adjust to the desired postion and effect. And then click “Play”button (Mark⑤) to play actions.（Mark①: switch translation/rotation mode.Mark②: switch model view.Mark④: demo parameter Mark⑤: play/pause button (press space key to play or pause)

After editing the keyframes for Sirius lying down, transition Xiaotian from lying to standing up, completing the entire action sequence. You might be curious? Can this action be achieved by simply copying the keyframes of standing? Let's go ahead.

Steps	Reference pictures	Remarks(Principle)
1. Copy the frame 0 to the frame 200. Now when you play the action, you find Sirius didn’t stand up fullyand didn’t lay down fully(Please refer to the remarks for the principle)		Why? Because the center of gravity of Sirius is at the back of body when it lies down, and a force is exerted backward which makes Sirius unable to stand up when rising directly. So, we need to add a transition posture between "lying" to "standing" postures, so that Sirius's center of gravity will move forward before rising.
2. Move the play cusor to the position of frame 150.
3. (Rebalance): Switch to rotation mode(Mark①). Select the quadrangular prism(Mark②).Drag the green circle to balance Sirius.（Mark③: demo parameter）		If we only restore the balance, we will find that Sirius still can't stand up completely, so we need to move the center of gravity of it forward.
4. Switch to translation mode (Mark①)and select the quadrangular prism(Mark②).Drag the red arrow to move Sirius forward.Mark③: demo parameter（Note: you can try more times or refer to the demonstration parameters for the movement. If Sirius moves forward less, it will not stand up fully, while if it moves forward too much, it will fall forward.)
5. Let's witness the effect. Position the blue block to frame 0 (Mark①) and click “Play”button(Mark②).

So far, we have completed the action editing from “standing” to “lying” and “standing” again.We believe that you have understood the whole operation. It’s time to edit exclusive action sets by yourself for your Sirius.

4.3 Basic Operation in Blender

For more operations and information, please see the official tutorial: Blender 4.3 Manual

Ⅴ.Play Action Sets in Python

After learning action editing, you may hope to apply these actions in local environment and calling by AI Large Language Model (LLM). On the purpose, we export the action files with the export function in Blender. And run the Python codes in local environment. Let’s learn how to upload, download and share these cool action sets edited in your efforts.

5.1 Preparation for Python

5.1.1 Installation of Python

Steps	Reference pictures
1. Click Python Installing Package to download the latest version release.
2. In the Python Setup interface,check all the options (Mark①).Select and click “Install Now”(Mark②). Note: If you forget to check, please uninstall and reinstall the Python.

5.1.2 Configuration of Python

Steps	Reference pictures
1. Press Windows + R on the keyboad to open the “Run” dialog box. Input cmd and press “OK”.
2. The Run Command Window pops up, input commands as shown in the right picture: pip install numpy hengbot-api -i https://pypi.tuna.tsinghua.edu.cn/simple Press Enter to run.

5.1.3 Create Python Files

After installing Python and configuring the development environment, let’s learn how to create Python files for modifications by ourselves in the future.

#Python播放哮天动作
from hengbot import Sirius
# set IP
IP = '192.168.8.154'
def test_play_frame(ip):
    import time
    # connect through ip
    with Sirius.robot_control(ip) as robot:
        # switch to edit mode and return to edit mode operation object
        edit = robot.switch_mode(Sirius.MODE_EDIT)
        # play action frame
        edit.play('./20240808_Shaking_your_head.txt')
        input("回车退出")
test_play_frame(IP)

Steps	Reference pictures
1. Create a new file folder to save files. The folder name is customized or copy the folder name of the example.
2. Open Python IDLE.
3. Click File (Mark①) and select New File(Mark②) to create a new file.
4. Copy the above codes into the new file. Click File->Save **(Mark①)**to save the new file into the folder Python_sparky (Mark②). Use “English+Number” as the file name (Mark③) in case it was not recognized by Python.

5.2 Export and Check the Blender File

Export action files from Blender for playing in Python.

Steps	Reference pictures
1. Swtich to the file (Mark①and②)240823_udp_motions.pyand find the command line No.324 (Mark③), change the file name. Run the file(Mark④) and the system will save the file atuomatically.
2. As the recommendation, we have saved the engineering files in the same directory with the Blender installation file, now let’s turn to the directory to open the “txt” file. Note: we have to check whether the line number of action commands is same with the number of the final line.

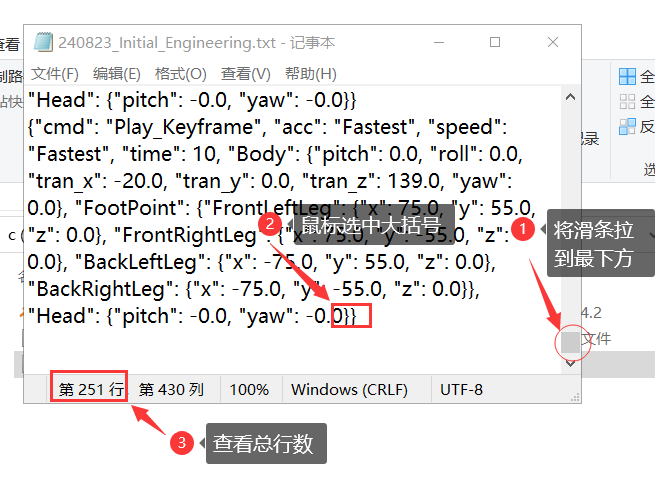

3. Drag the slider to the bottom (Mark①) and select the last characters (Mark②) to observe the number of lines (Mark③).
4. The position of the slip is the end of the frames (see the red box) after playing the actions. Check whether the number of lines nd the number of the frames is consistent (the start number of the frame is 0, so the number of lines will be one less than the number of frames).

After exporting and checking the text file, we can try to play the actions in Python.

5.3 Playing Actions in Python

Note

Before play another action, the current action shall be ended.

Steps	Reference pictures

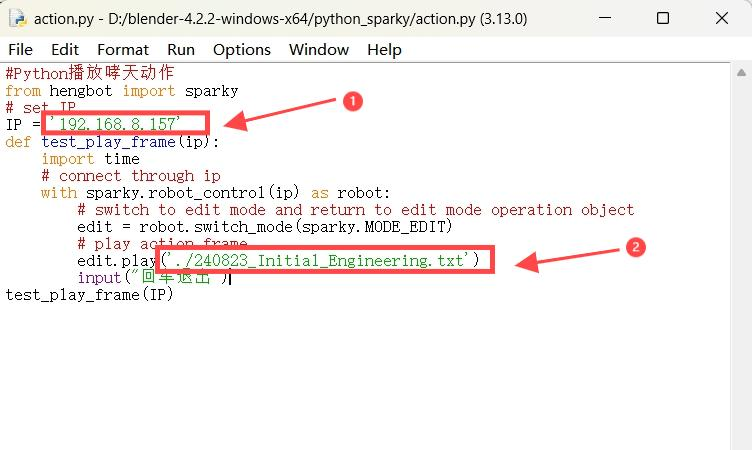

1.Find the file action.py Chage the IP address the one on the head of Sirius(Mark①).Change the file name into the name of the exported txt file(Mark②).（Note: both the action.py and txt files are in the same directory.)
2.Click Run (Mark①) and click Run Module (Mark②) to run the Python programe.
3.The run program will be displayed in Python window, and the local running effect in Sirius is like the video on the right.

Ⅵ.FAQ

6.1 Q: Python program has an error that cannot be connected. How to solve it?

Traceback (most recent call last):
  File "D:\桌面\Python播放动作\action.py", line 14, in <module>
    test_play_frame(IP)
  File "D:\桌面\Python播放动作\action.py", line 10, in test_play_frame
    edit = robot.switch_mode(Sirius.MODE_EDIT)
  File "C:\Users\Administrator\AppData\Local\Programs\Python\Python312\Lib\site-packages\hengbot\Sirius.py", line 116, in switch_mode
    self.ws.send('{"cmd": "Mode_Switch", "target": "' + target + '"}')
  File "C:\Users\Administrator\AppData\Local\Programs\Python\Python312\Lib\site-packages\websocket\_app.py", line 290, in send
    if not self.sock or self.sock.send(data, opcode) == 0:
  File "C:\Users\Administrator\AppData\Local\Programs\Python\Python312\Lib\site-packages\websocket\_core.py", line 297, in send
    return self.send_frame(frame)
  File "C:\Users\Administrator\AppData\Local\Programs\Python\Python312\Lib\site-packages\websocket\_core.py", line 337, in send_frame
    l = self._send(data)
  File "C:\Users\Administrator\AppData\Local\Programs\Python\Python312\Lib\site-packages\websocket\_core.py", line 559, in _send
    return send(self.sock, data)
  File "C:\Users\Administrator\AppData\Local\Programs\Python\Python312\Lib\site-packages\websocket\_socket.py", line 152, in send
    raise WebSocketConnectionClosedException("socket is already closed.")
websocket._exceptions.WebSocketConnectionClosedException: socket is already closed.

A：
• Check whether Sirius is started up. • Check whether Sirius and the PC are on the same LAN. • Check whether the IP address on the screen of Sirius and the IP address of the Python file are consistent.

6.2 Q: Python program has an error that failed to find this file. How to solve it?

Traceback (most recent call last):
  File "D:\桌面\Python播放动作\action.py", line 14, in <module>
    test_play_frame(IP)
  File "D:\桌面\Python播放动作\action.py", line 12, in test_play_frame
    edit.play('./240823_Initial_Engineerin.txt')
  File "C:\Users\Administrator\AppData\Local\Programs\Python\Python312\Lib\site-packages\hengbot\Sirius.py", line 451, in play
    with open(path, 'r', encoding='utf-8') as f:
FileNotFoundError: [Errno 2] No such file or directory: './240823_Initial_Engineerin.txt'

A:
• Check whether the file exported from Blender is placed in the Python file directory. • Check whether the text name in Python file is consistent with the file name exported from Blender.

6.3 Q: Sirius will jump after the Python program runs. How to solve it?

A: After the action is finished, press Enter key for seven times in the IDLE Shell window,and then run the program.

6.4 Q: Python program has an error that "numpy" and "hengbot-api" cannot be found. How to solve it?

• Press the "Windows" key and the "R" key at the same time to open the "Run" dialog box. Type "cmd" and then press the "Enter" key. In the command prompt window, execute the following command line.

pip install numpy hengbot-api -i https://pypi.tuna.tsinghua.edu.cn/simple
